Bresser DST-1028 USB Digital Microscope
Bresser DST-1028 USB Digital Microscope

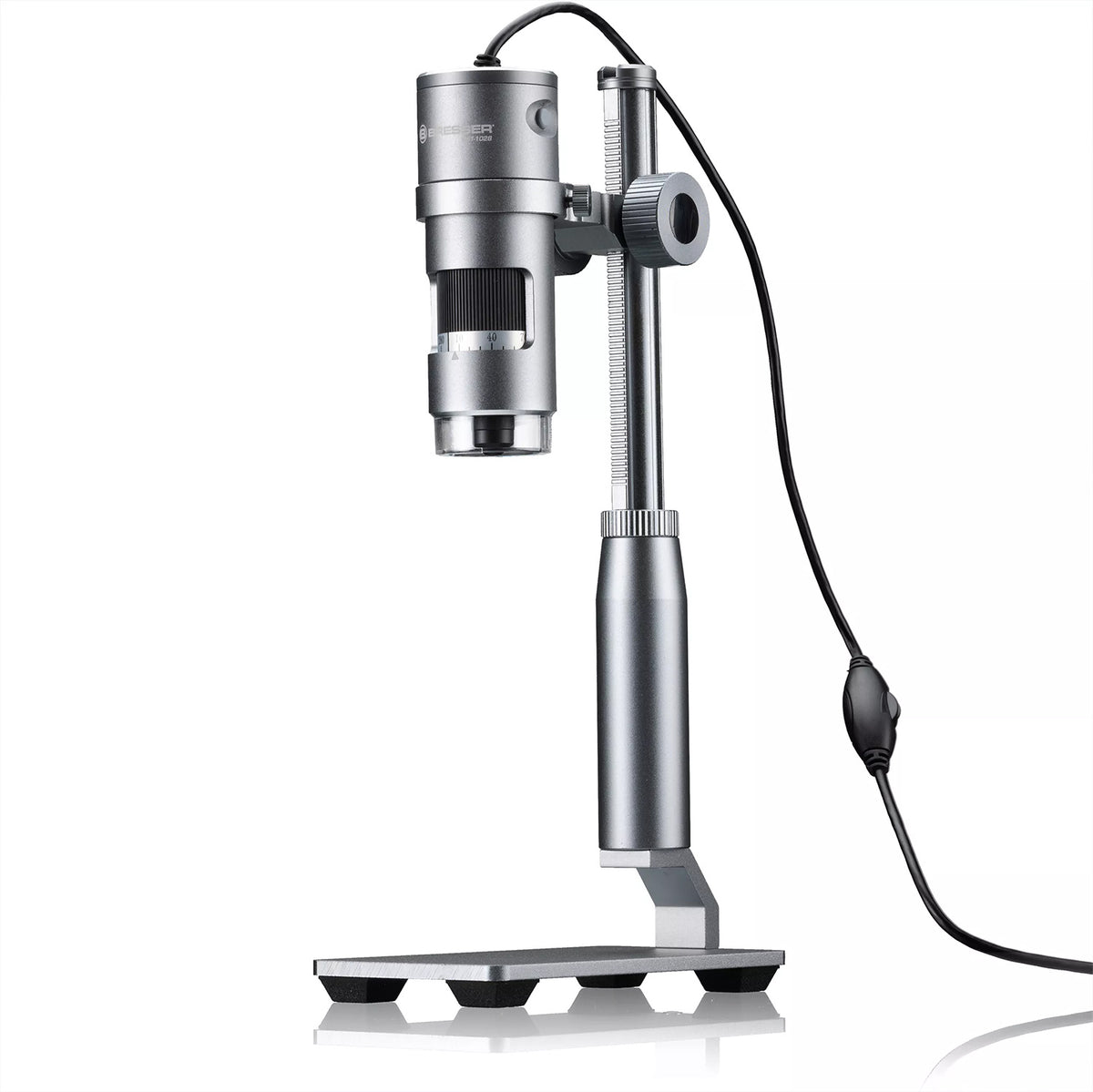

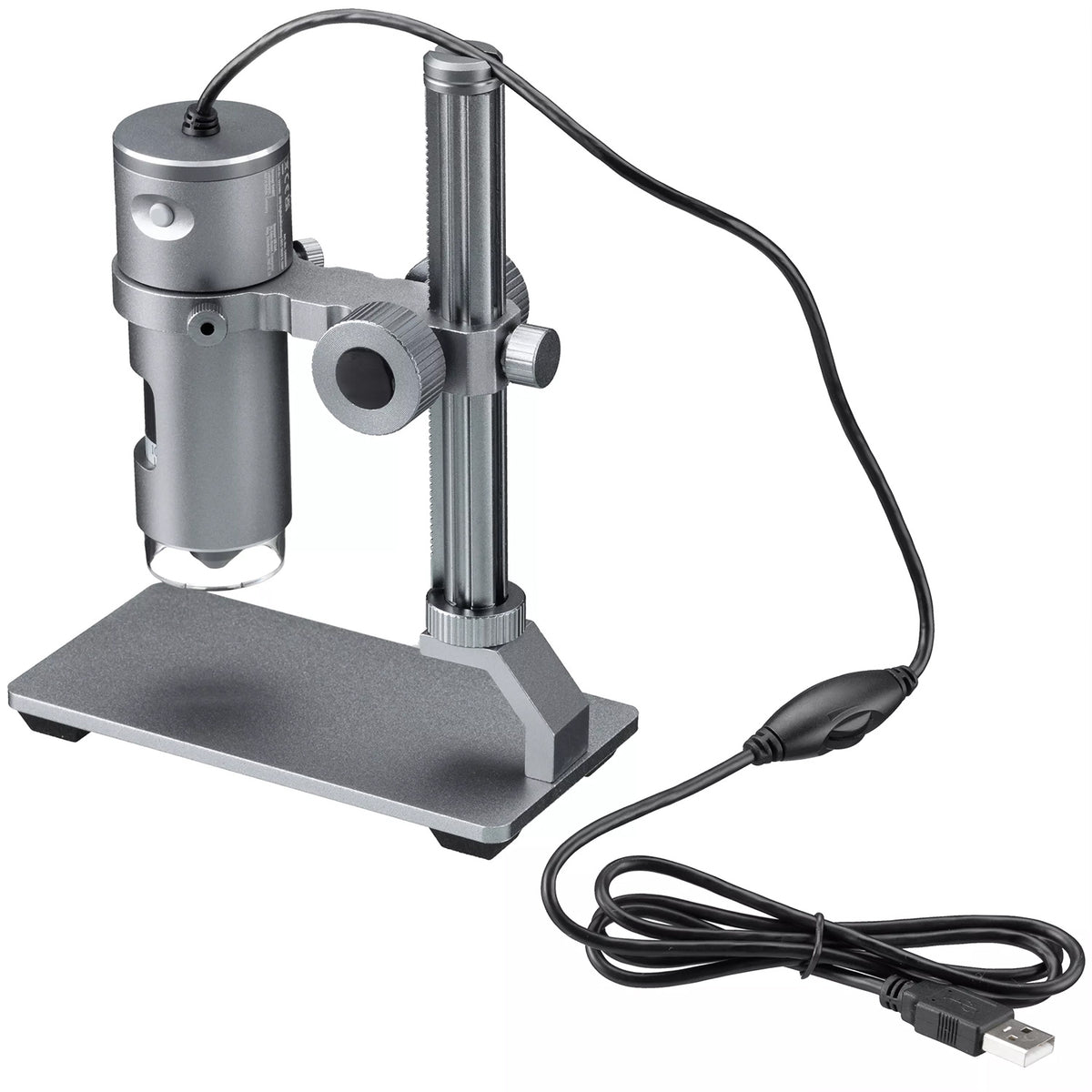

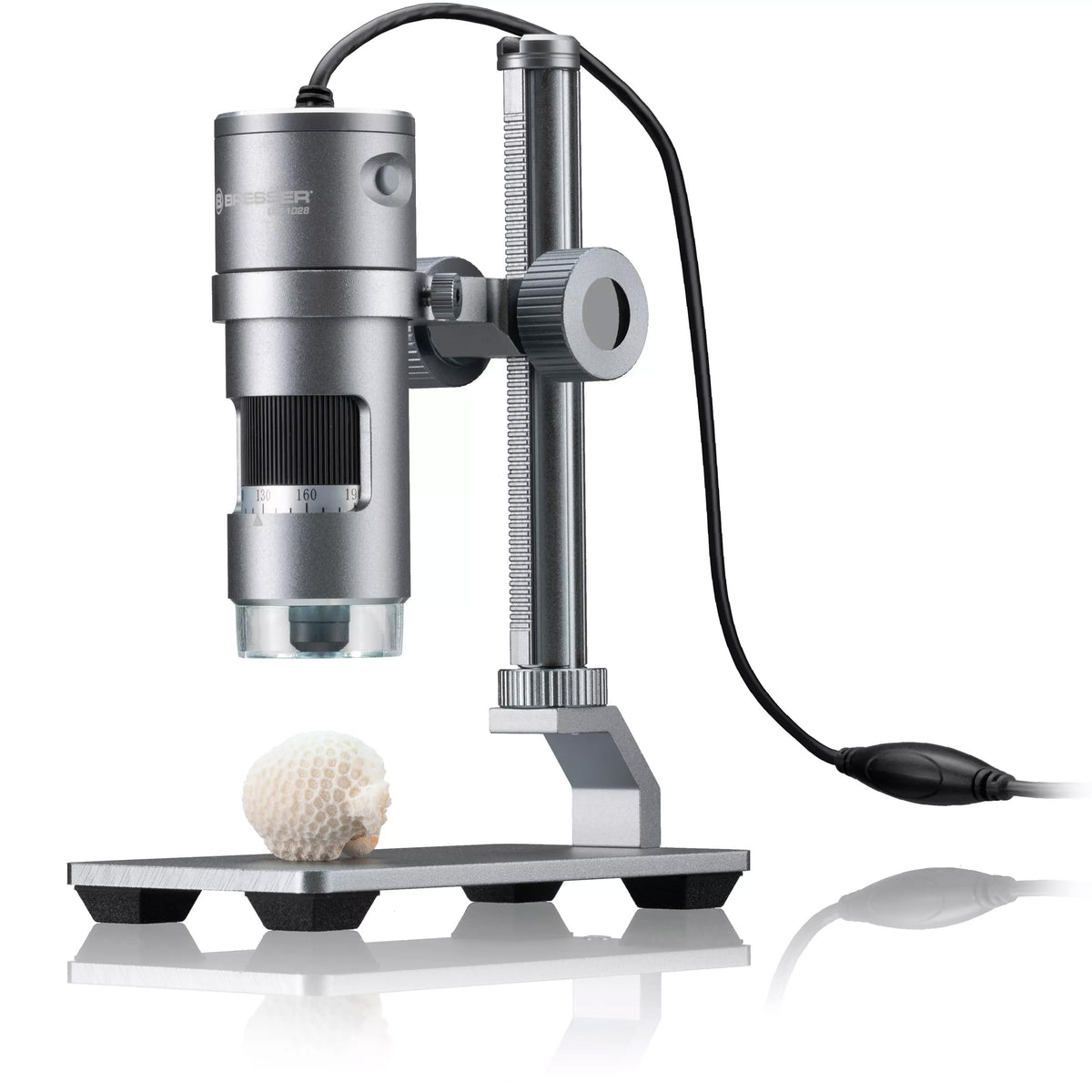

The DST-1028 is a USB microscope on a metal stand. It plugs into a Windows computer, which powers it and shows the picture from its 5 MP Sony sensor, and the zoom lens covers 10x to 280x. It's for solid things, such as circuit boards and components, solder joints, coins, stamps, printed documents, insects and plants.
The working distance is 110 mm at the lowest setting, so there's room for a soldering iron or tweezers underneath, and the stand adjusts in height for tall or flat objects. Eight LEDs in a ring around the lens light the subject, with a dimmer on the cable. Bresser gives the field of view as 42 by 32 mm at 10x and 1.6 by 1.2 mm at 280x.
The software is a download for Windows 10 and 11 only, so it isn't a choice for a Mac or a Chromebook. It lights from above only and won't show slides or pond life, which need a compound microscope. The DTX 90 costs less and works with a Mac, and the DTX 350 LCD has its own screen.
Bresser DST-1028 USB Digital Microscope
- Expert Buying AdviceFind the right microscope
- Tracked UK DeliveryReliable, trackable shipping
- Manufacturer WarrantyProtection for your purchase
- Secure CheckoutShop with confidence
Is it right for you?
Good for
Not for
Specification
| Brand | Bresser |
|---|---|
| Model number | 78983 |
| Magnification | 10x to 280x (on screen) |
| Head | USB |
| Lighting | Upper LED |
| Camera included | Yes |
| Stand and stage | Metal stand with built-in focus, 10 to 110 mm working distance |
| Power | USB from the computer |
| Dimensions | Box 21 x 21 x 8 cm |
| Weight | 0.92 kg boxed |
Compared with
The model below

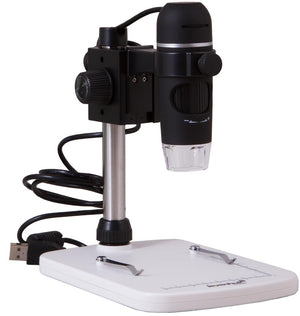

Levenhuk DTX 90 USB Microscope£126.95
|
This model
Bresser DST-1028 USB Digital Microscope£147.95
|
The model above

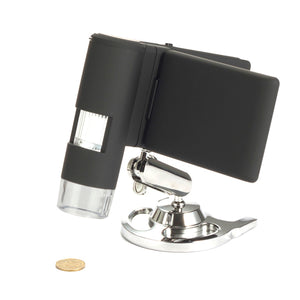

Levenhuk DTX 500 Mobi Handheld Digital Microscope£202.95
| |
|---|---|---|---|
| Magnification | 10x to 300x (on screen) | 10x to 280x (on screen) | 20x to 500x |
| Head | USB | USB | LCD screen |
| Screen or camera | Camera included | Camera included | Built-in screen and camera |
| Lighting | Upper LED | Upper LED | Upper LED |
| Best for | Electronics and soldering | Electronics and soldering | Not stated |
| Choose this if | You use a Mac, or want a stage with a measuring scale for less. | You want a metal stand and up to 110 mm under the lens, and use Windows. | You want a built-in screen and battery, with no computer needed. |
What’s in the box
- Bresser DST-1028 USB microscope with built-in cable and light dimmer
- Metal stand with focusing
- Stand extension
- Software download (Windows only)
Can I return it if it’s not right?
Yes. You have 14 days from delivery to tell us, and a further 14 days to send it back, for a full refund. Keep the manufacturer’s box. Faulty items are covered separately under the warranty.
Not sure this is the right microscope?
Email us with what you want to look at and who it’s for, and we’ll give you a plain answer.
