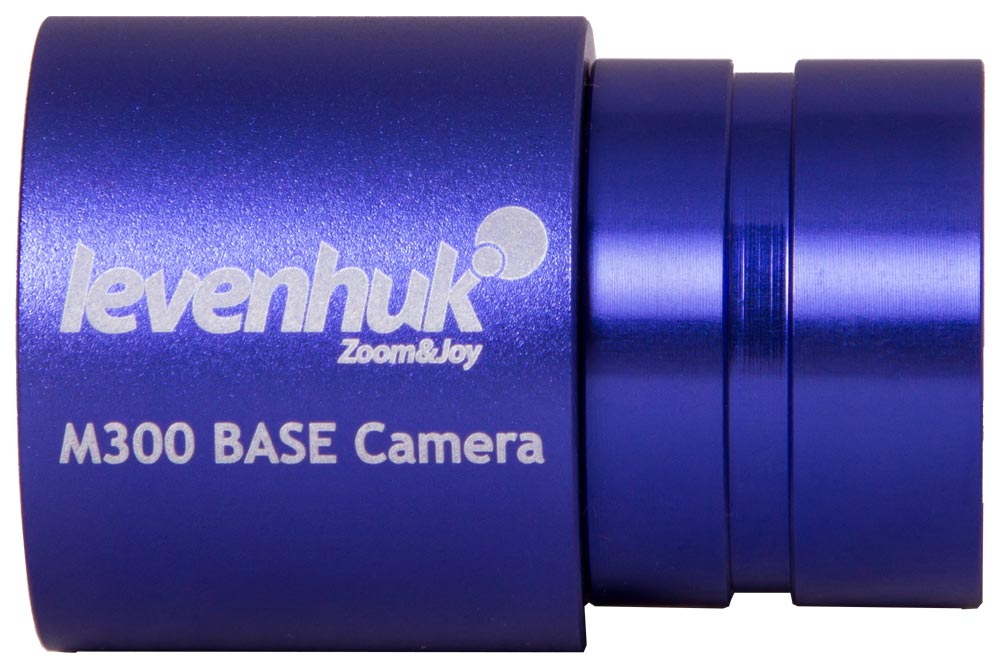

• Levenhuk M300 BASE microscope camera

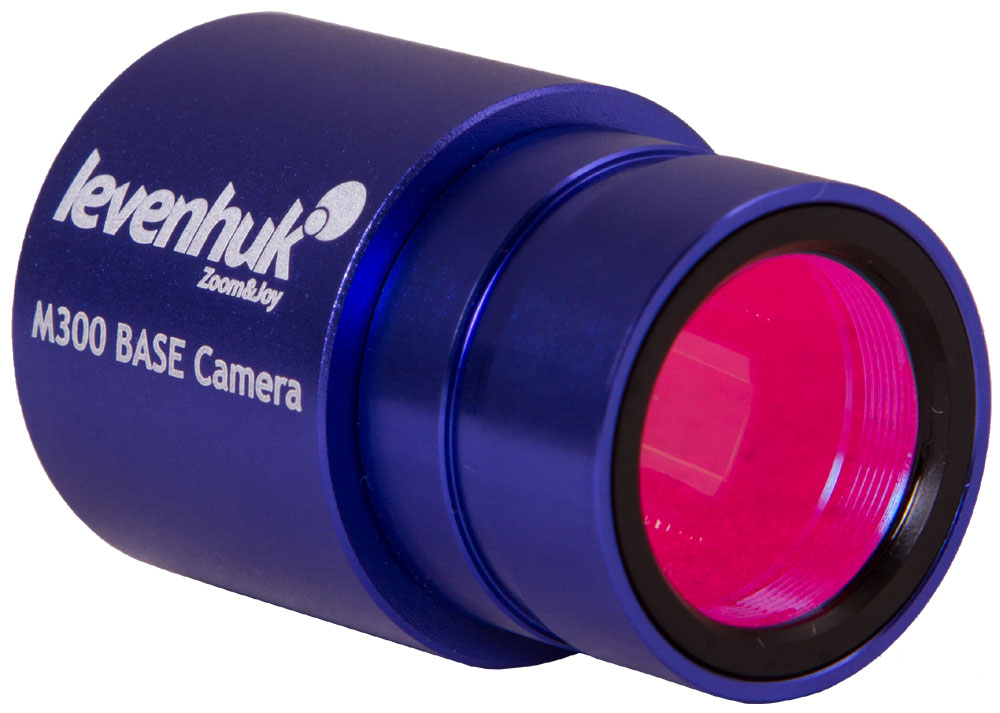

  • Levenhuk M300 BASE camera, lens end

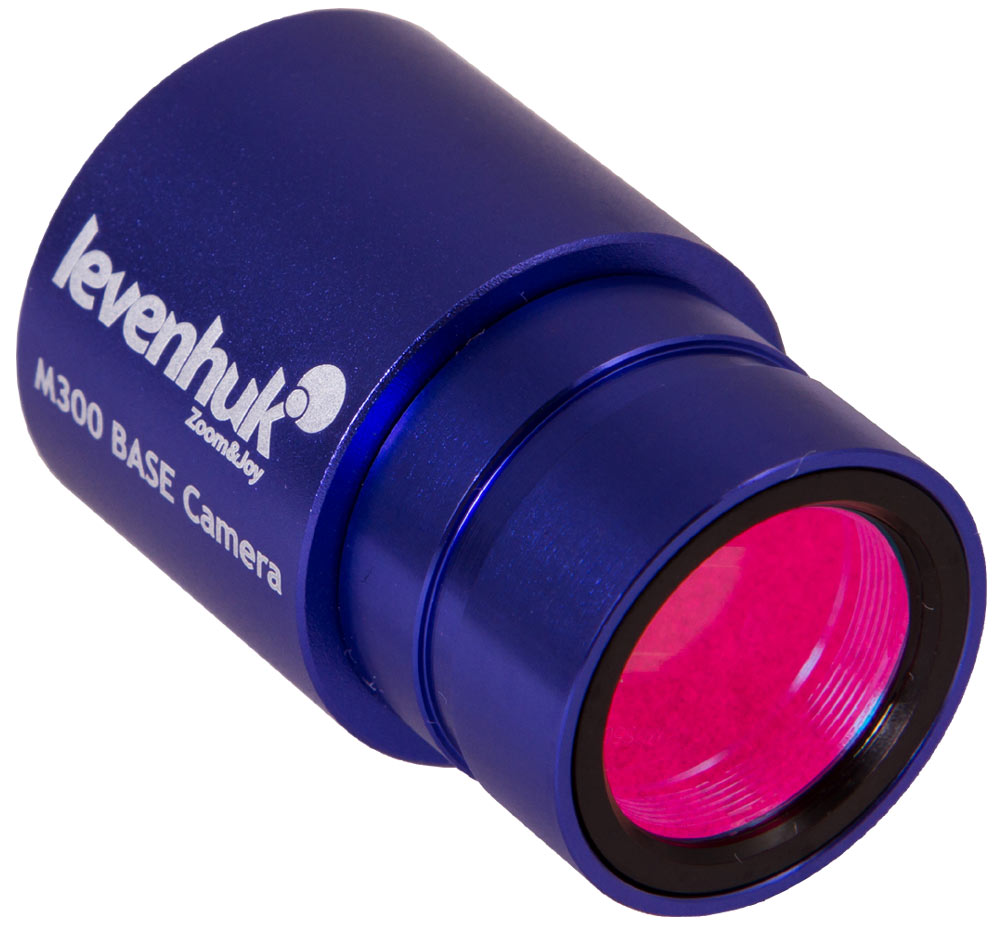

  • Levenhuk M300 BASE camera, another angle
  • Levenhuk M300 BASE camera box
1 4

Levenhuk M300 BASE Microscope Camera

Levenhuk M300 BASE Microscope Camera

£135.95
£135.95
Sale Sold out
Price includes VAT Free UK delivery on orders over £100, delivery charge shown at checkout

The M300 BASE is a microscope camera that replaces the eyepiece. You take the eyepiece out of a compound microscope with a standard 23.2 mm tube, slide the camera in, and plug it into a computer by USB, which also powers it. The live picture appears on the screen, where you can save photos as JPG, BMP, PNG or TIF and record video.

The sensor is a 3 MP colour CMOS with a top resolution of 2048 by 1536. It captures 3 frames a second at full resolution and 7.5 at 1280 by 1024, so it suits still photos and slow-moving specimens better than smooth video. Levenhuk's software comes on CD and as a download, and the camera works with Windows 8, 10 and 11, macOS and Linux.

It fits the Rainbow microscopes, which have 23.2 mm tubes, and Levenhuk names it as a camera for the Rainbow 2L. It doesn't fit the LabZZ M101 (29 mm) or the 30.5 mm tubes on our stereo microscopes without an adapter, which Levenhuk doesn't sell, and it can't connect to a phone. For phone photos through any eyepiece, the A10 phone adapter is the cheaper route.

Is it right for you?

Good for

  • Photographing slides through a Rainbow microscope
  • Showing the view on a computer screen so a group can watch
  • Still photos and slow-moving specimens at up to 3 MP

Not for

  • Smooth video; it records 3 frames a second at full resolution
  • Phones and tablets; it connects to a computer only
  • The LabZZ M101 or our stereo microscopes, whose eyepiece tubes are a different size

Specification

BrandLevenhuk
Model number70355
Camera included Yes
EyepiecesFits a 23.2 mm eyepiece tube
PowerUSB from the computer
DimensionsBox 6 x 14 x 9 cm
Weight0.17 kg boxed
Manufacturer and safety information
Manufacturer
Levenhuk, Inc.
Address
6021 Catlin Dr.
Tampa, FL
United States
Contact
www.levenhuk.com
Model number
70355
EAN
5905555003412

What’s in the box

  • Digital camera
  • USB cable
  • Software and drivers on CD
  • User manual
