Bresser Researcher Bino 40-1000x Microscope
Bresser Researcher Bino 40-1000x Microscope
Complete the kit
Ticked items are added to your basket with this instrument.
We could not add the extras. Please add them from their own pages.
The Researcher Bino is a full-size binocular microscope with a metal body and four objectives, 4x, 10x, 40x and a 100x oil immersion lens, which give 40x to 1000x with the 10x eyepieces. At 1000x, with a drop of the immersion oil from the box, you can see bacteria and the detail inside blood cells, which is where a 400x microscope runs out.

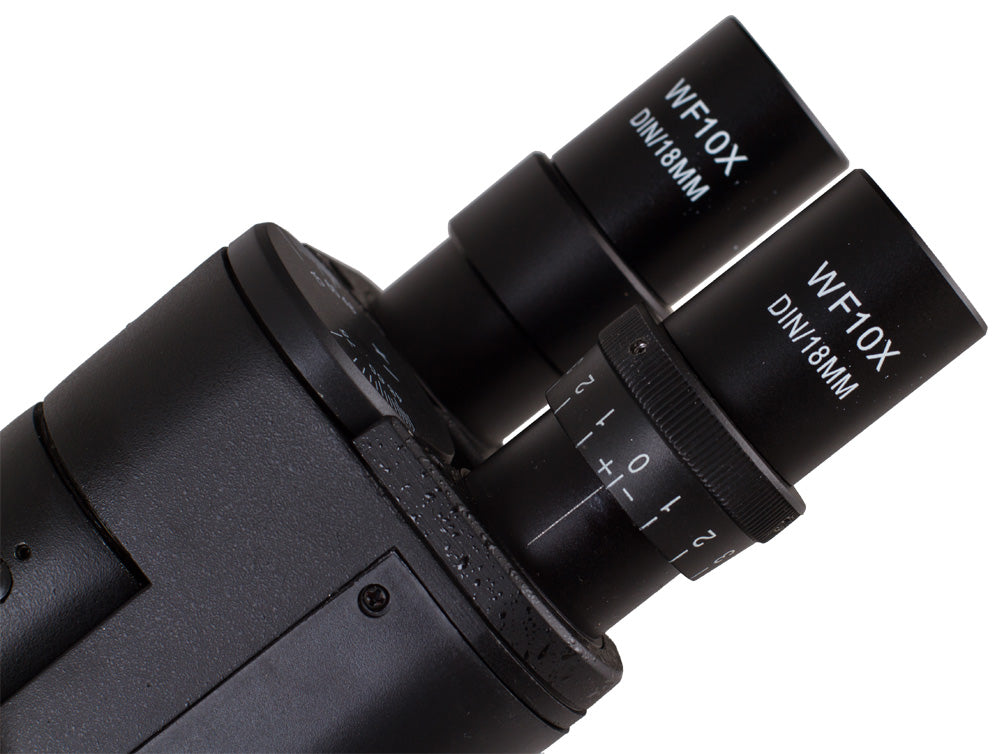

The head is angled at 30 degrees, the eye spacing adjusts from 53 to 75 mm and the eyepieces have ±5 dioptre correction, so it can be set up for each person who uses it. Under the stage is an Abbe condenser with an iris diaphragm, the stage has Vernier scales and holds two slides at once, and focus has coarse and fine controls. The LED is dimmable and runs from the mains adapter in the box; there's no battery option.
Bresser pitches it at biology, medicine and teaching, and it suits an adult hobbyist or a student who wants oil immersion with two eyepieces. It comes with a blue filter, a pouch and a dust cover but no slides, so add a set such as the Bresser 100-slide set. For school-level work at 400x on battery power, the Erudit Basic also has two eyepieces.




Bresser Researcher Bino 40-1000x Microscope
- Expert Buying AdviceFind the right microscope
- Tracked UK DeliveryReliable, trackable shipping
- Manufacturer WarrantyProtection for your purchase
- Secure CheckoutShop with confidence
Is it right for you?
Good for
Not for
Specification
| Brand | Bresser |
|---|---|
| Model number | 62566 |
| Magnification | 40x to 1000x |
| Head | Binocular |
| Lighting | Lower LED |
| Camera included | No |
| Stand and stage | Metal body, stage with Vernier scales, Abbe condenser with iris diaphragm |
| Eyepieces | Two 10x, eye spacing 53 to 75 mm, ±5 dioptres |
| Objectives | 4x, 10x, 40x and 100x oil, achromatic |
| Power | Mains adapter (220 to 240 V, included) |
| Dimensions | Box 46 x 30 x 22 cm |
| Weight | 4.69 kg boxed |
Compared with
The model below
Bresser Erudit DLX 40-1000x Microscope£236.95
|
This model
Bresser Researcher Bino 40-1000x Microscope£337.95
| |
|---|---|---|
| Magnification | 40x to 1000x | 40x to 1000x |
| Head | Monocular | Binocular |
| Screen or camera | No | No |
| Lighting | Lower LED | Lower LED |
| Best for | Pond life and nature | Pond life and nature |
| Choose this if | One eyepiece is fine and you want a rechargeable battery for field trips. | You want two eyepieces and 1000x on a metal body. |
What’s in the box
- Bresser Researcher Bino microscope
- Two 10x eyepieces
- 4x, 10x, 40x and 100x oil objectives
- Blue filter
- Immersion oil
- Mains adapter
- Pouch
- Dust cover
- User manual
Can I return it if it’s not right?
Yes. You have 14 days from delivery to tell us, and a further 14 days to send it back, for a full refund. Keep the manufacturer’s box. Faulty items are covered separately under the warranty.
Not sure this is the right microscope?
Email us with what you want to look at and who it’s for, and we’ll give you a plain answer.
